تفاصيل المنتج:
|
| ماركة: | مرج، مرعى، أرض معشوشبة | Max. الأعلى. RPM دورة في الدقيقة: | 6600 |
|---|---|---|---|
| أسلوب: | اينوكس | مقاس: | 230*2*22.2 |
| مادة كاشطة: | أكسيد الألمونيوم | سمات: | حياة طويلة ، قطع سريعة ، مقاومة تحطيم |
| حجم الشجرة: | 7/8 بوصة | صلابة: | A46RBF |

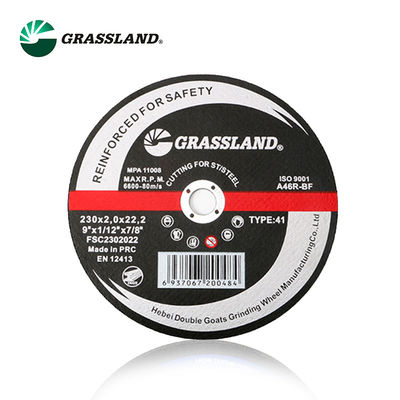

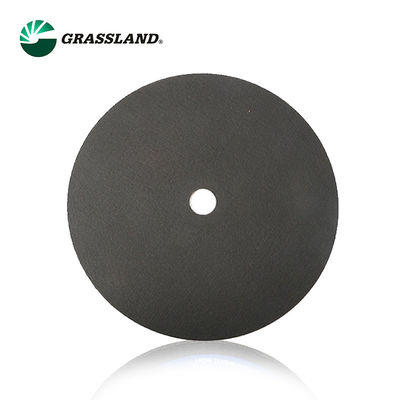

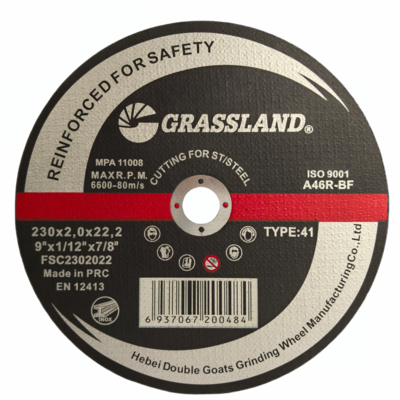

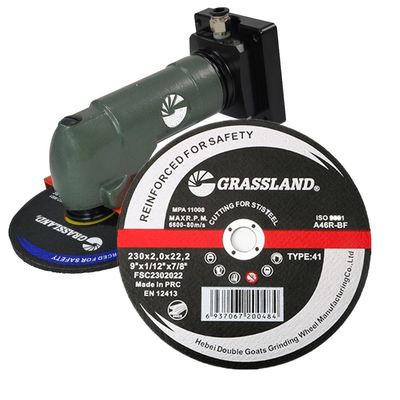

GRASSLAND 9" 230mm Stainless Steel Cutting Discs X 2mm X 22.2mm Angle Grinder
Products Description--
Material: Resin
Diameter: 230mm/ 9"
Thickness: 2mm
Hole Size: 22.2mm/ 7/8"
Max Operating Speed: 6600 RPM
Use: Angle Grinder
Enjoy a long life and high-quality output with GRASSLAND 9" x 1/12" x 7/8" Right Angle Type 41 Cut Off Wheels on your grinder. Thinner design minimizes the surface area contact between the material and the cut-off wheels for faster and cleaner cuts. The premium tough aluminum oxide abrasive continuously exposed during use to maintain an aggressive cutting edge and helps getting longer useful life than standard wheels. Fully reinforced with fiberglass mesh for added safety and controlled performance, these wheels are universally suitable for steel and stainless steel (INOX) at an affordable price.
GRASSLAND metal cutting wheel is designed for best efficiency in heavy-duty condition. The modern technology in the GRASSLAND 9 inches cutting wheel increases bonding in the core material and gives an excellent cut off wheels.
With high-performance aluminum oxide grain for helps to increased life and superior material removal, GRASSLAND High Performance Metal Cutting wheels have high grain concentration that enables aggressive cutting action and smooth-running wheels
Features and benefits
1. Multilevel excellent glass fiber mesh and resin as reinforced bonded material. High cutting efficiency.
2. These good quality and long lasting discs ensure fast, straight and clean cutting
3. Continuous wheel blade offers smooth and chip-free cuts
Application:
Applications: All Stainless Steel and Non-ferrous Metal applications - Contaminant Free: Iron Sulfur, Chlorine ≤0.1%
| Cutting wheel information: | |||
| Product Name | 230 X 2 X 22.2 MM | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed | 80 m/s | OEM Service | Acceptable |
| R.P.M | 6600 | Package | Kraft Carton and Pallet |
| Grit size | 60# | HS Code | 68042210 |
| Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
