تفاصيل المنتج:
|
| رمز HS: | 68042210 | صلابة: | A46RBF |
|---|---|---|---|
| ماكس العمل: | 80 م/ث | حجم الحصى: | 60# |
| وكيل الترابط: | الراتنج المستعبدين | لا.: | FAC75169 |
| لون: | أسود | سمات: | حياة طويلة ، قطع سريعة ، مقاومة تحطيم |
| البعد: | 3 "x 1/16" × 3/8 " |

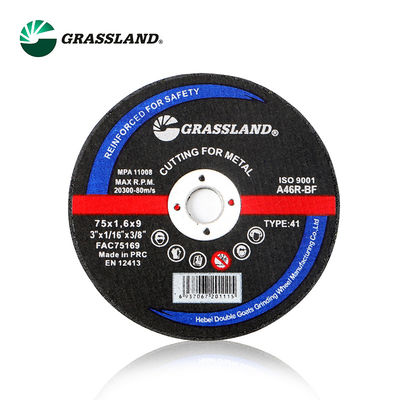

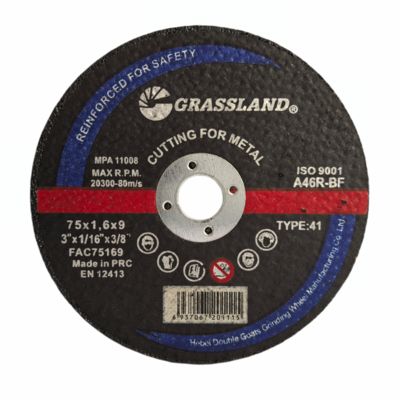

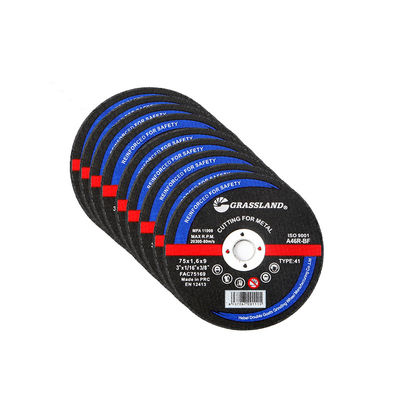

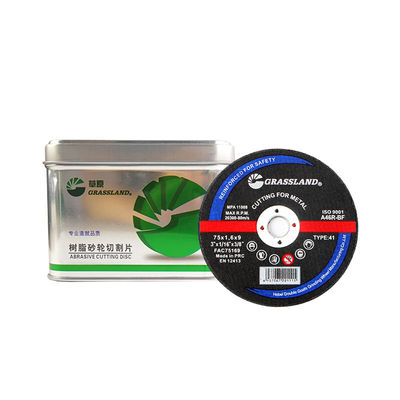

GRASSLAND 3" Stainless Steel Cutting Discs75mm X 1.6mm X 9mm Angle Grinder
Products Description--
Material: Resin
Diameter: 75mm/ 3 "
Thickness: 1.6mm / 1/16"
Hole Size: 9mm / 3/8"
Max Operating Speed: 20300 RPM
Use: Angle Grinder
Grassland Metal Inox Thin Cutting Discs enable a very clean quick cut to be achieved with little effort. They are perfect for precise vibration free metal cutting.Manufactured using Aluminium Oxide abrasive grit with 2 Bonded Sheets of fibre glass reinforcing and resin bonded to provide both safety and optimum cutting performance.
GRASSLAND metal cutting wheel is designed for best efficiency in heavy-duty condition. The modern technology in the GRASSLAND 4 inches cutting wheel increases bonding in the core material and gives an excellent cut off wheels.
Features and benefits
1. Multilevel excellent glass fiber mesh and resin as reinforced bonded material. High cutting efficiency.
2. These good quality and long lasting discs ensure fast, straight and clean cutting
3. Continuous wheel blade offers smooth and chip-free cuts
Application:
Applications: All Stainless Steel and Non-ferrous Metal applications - Contaminant Free: Iron Sulfur, Chlorine ≤0.1%
| Cutting wheel information: | |||
| Product Name | 75 X 1.6 X 9 MM | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed | 80 m/s | OEM Service | Acceptable |
| R.P.M | 20300 | Package | Kraft Carton and Pallet |
| Grit size | 60# | HS Code | 68042210 |
| Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
